Built around the NXP i.MX 91 applications processor with chip-down Wi-Fi and Bluetooth powered by the IW612, this solution delivers integrated, efficient connectivity for intelligent edge applications.
.webp)

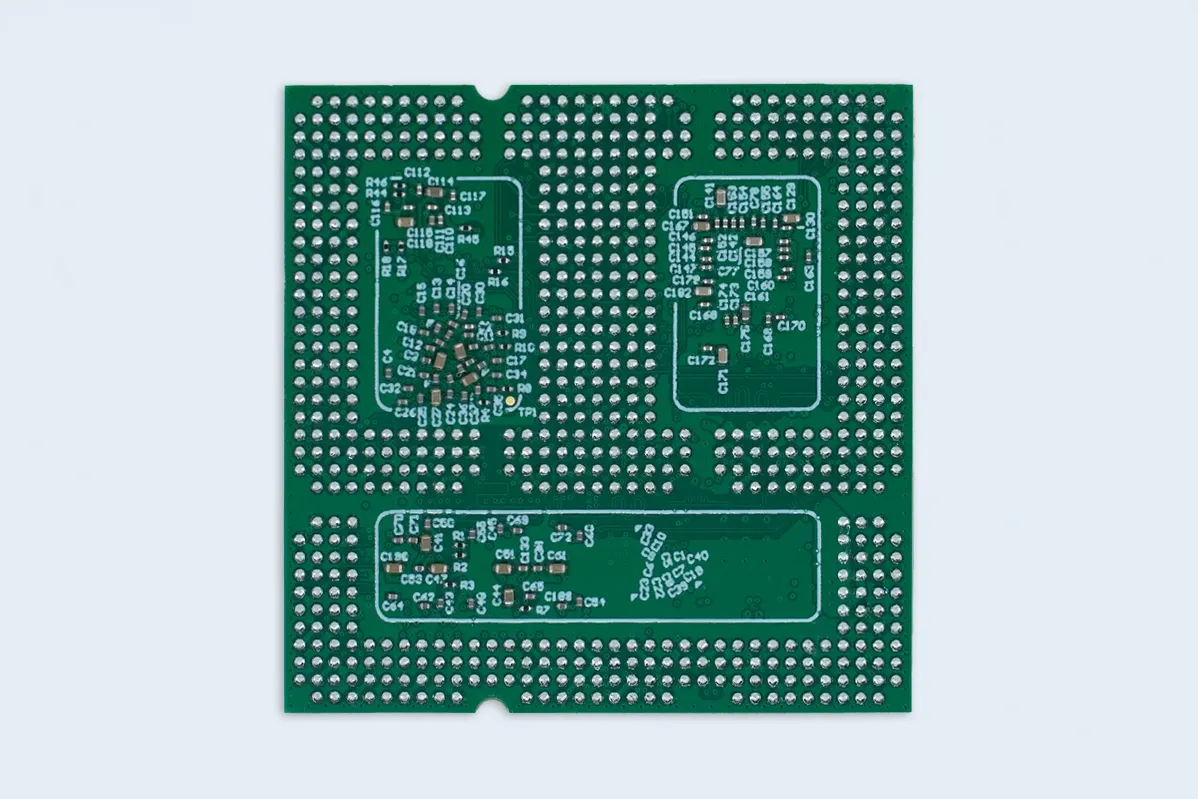

Built around the NXP i.MX91, a single-core Arm Cortex-A55 running at up to 1.4 GHz, the OSM-IMX91 System on Module delivers a cost-optimized, power-efficient Linux platform with EdgeLock secure enclave for built-in security. The module exposes a broad interface set: a parallel camera input, dual CAN FD, dual Gigabit Ethernet (one with TSN support), audio in and out, ADC, two USB 2.0 ports, and a parallel RGB display interface. On-board NXP IW612 wireless provides dual-band Wi-Fi 6 (802.11ax/ac/a/b/g/n), Bluetooth/BLE 5.4, and 802.15.4 for Thread and Zigbee, making it well suited for Matter-enabled IoT and industrial edge devices.
